Description
Features:
- 6.5% overdrive built into the VFD Spec transmission
- Forward-mounted motor for improved weight distribution
- Chromoly universal axle shafts with 49° steering angle
- Brass inner axle tube reinforcements for added strength and low center of gravity
- Full metal internal transmission gears for durability under load
- High-pinion hypoid machined gear design for improved gear mesh and clearance
- CV-style driveshaft joints for smooth articulation and reduced torque twist
- Hidden body clip system with quick-access hinged front design
- High-clearance bumpers and rock sliders to maximize obstacle clearance
- Double shear shock mounts for increased suspension strength and stability
Includes:

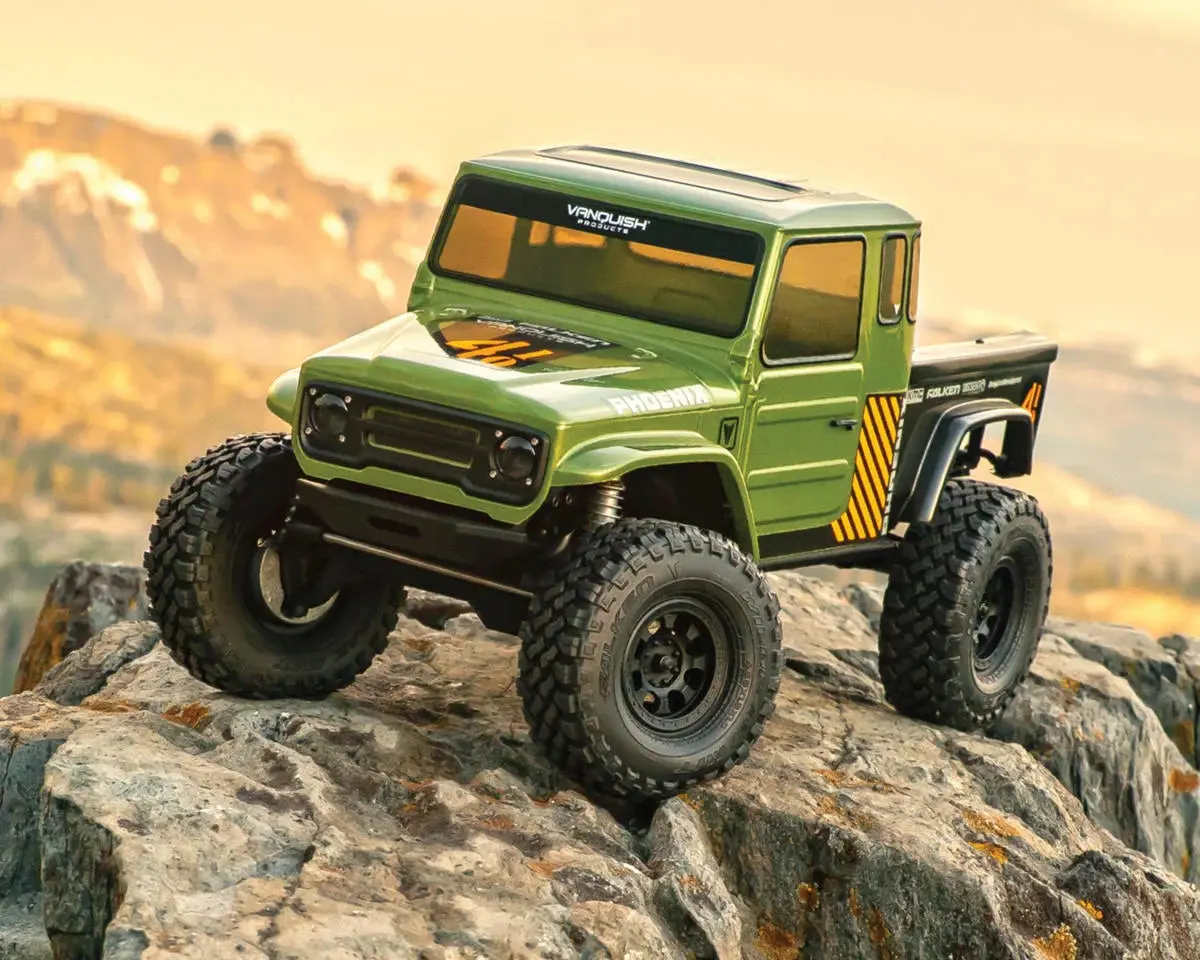

- (1) VS4-10 Phoenix Portal 1/10 RTR Brushed Rock Crawler
- (1) Pre-Installed 3S Capable VE-1 ESC w/XT60 Connector
- (1) Pre-Installed VM-1 35T Brushed Motor
- (1) Pre-Installed VS-1 Metal Gear Servo
- (1) VT-1 4-Channel Transmitter
- Product Manual
Needed To Complete:
- (1) 2-3S LiPo or 6-Cell NiMH Battery w/XT60 Connector
- (1) Compatible Battery Charger
- (4) AA Batteries for Transmitter
Specifications:
| Scale |
1:10 |
| Power Source |
2S-3S LiPo (7.4-11.1V) |
| Length |
– |
| Wheelbase |
12.32in (313mm) |
| Width |
9.84in (250mm) |
| Height |
9.84in (250mm) |
| Weight |
95.24oz (2700g) |
Electronics
| Motor: |
Brushed |
| ESC |
Brushed |
| Connector |
XT60 |
| Servo |
VS-1 Metal Gear |
|
Wheels
| Front |
1.9in |
| Rear |
1.9in |
| Hex |
12mm |
|
Tires
| Front |
Falken Wildpeak M/T |
| Rear |
Falken Wildpeak M/T |
|
| Assembly Level |
RTR |
*Tech Note: Ready-to-Run models come equipped with all electronics and include the transmitter needed for use. Please check the “Needed To Complete” above to make sure you have everything you need to get out and enjoy your RC model.
